Atmospheric Transmittance @ TAO site

This page provides the atmospheric transmittance expected at the TAO site. All data were calculated by the ATRAN model (Lord, S. D., 1992, NASA Technical Memorandum 103957) running on a NASA website. At the TAO site, precipitable water vapor (PWV) is expected to be 0.3 to 1.5 mm, and atmospheric transmission curves toward the zenith for PWVs of 0.3, 0.5, 0.7, 0.9, 1.2, and 1.5 mm are shown below.

NIR (1-6 um)

Overview

chtrans_nir_18504ft_lon30d_zenith_smoothed2e-3um-1.pngchtrans_nir_18504ft_lon30d_zenith_smoothed56e-5um-1.png

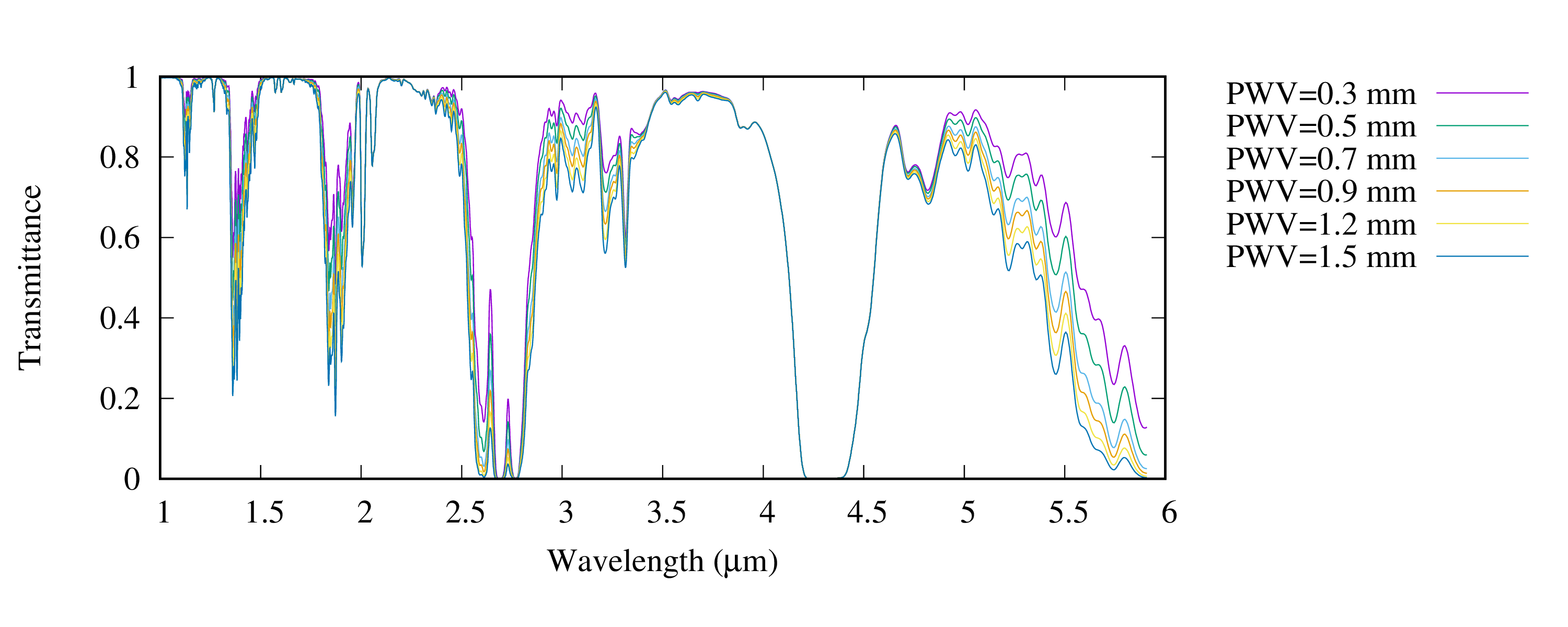

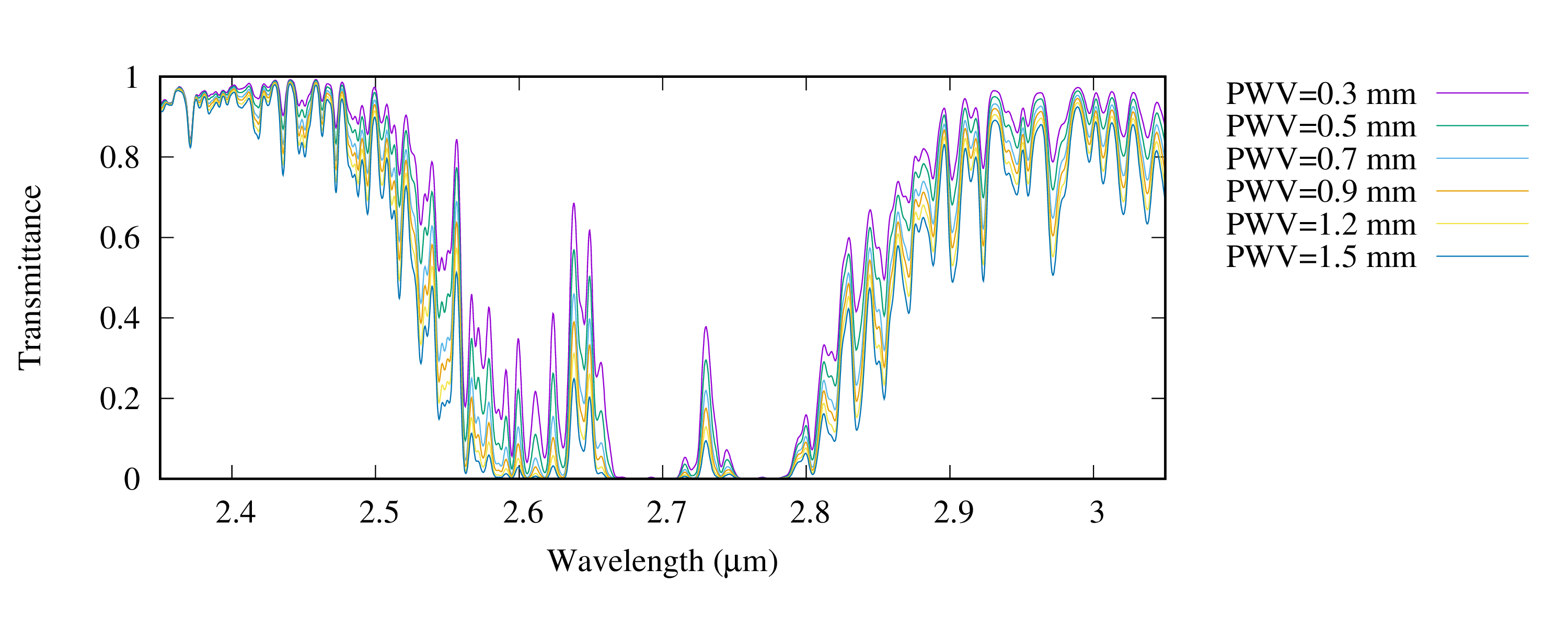

Near-infrared atmospheric transmittance smoothed with a Gaussian function with an FWHM of 0.002 um-1.Atmospheric transmittance around 2.7 um smoothed with a Gaussian function with an FWHM of 0.00056 um-1.

Data

PWV (mm)Resolution
No Smoothing0.00056 um-10.002 um-1
0.3filedatafiledatafiledata
0.5filedatafiledatafiledata
0.7filedatafiledatafiledata
0.9filedatafiledatafiledata
1.2filedatafiledatafiledata
1.5filedatafiledatafiledata

MIR N-band (6-15 um)

Overview

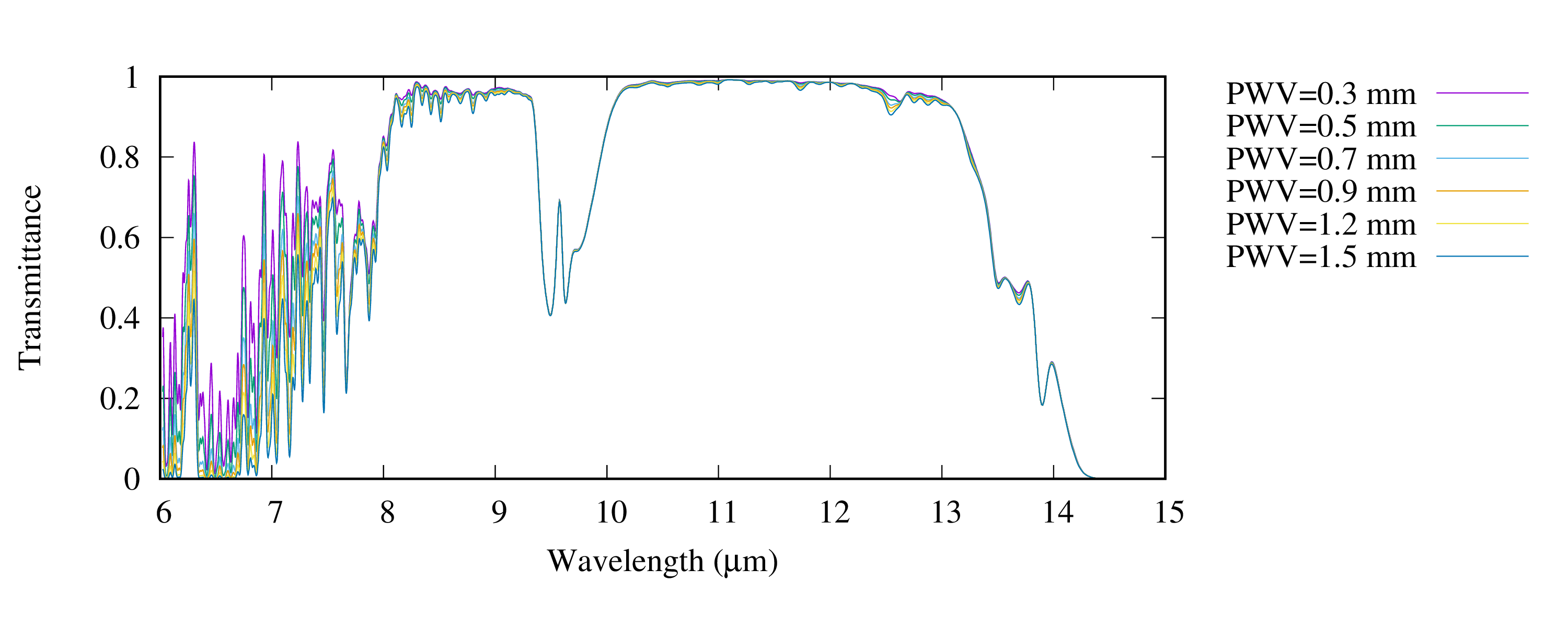

N-band atmospheric transmittance smoothed with a Gaussian function with an FWHM of 0.0005 um-1.

Data

PWV (mm)Resolution
No Smoothing0.0005 um-1
0.3filedatafiledata
0.5filedatafiledata
0.7filedatafiledata
0.9filedatafiledata
1.2filedatafiledata
1.5filedatafiledata

MIR Q-band (15-27 um)

Overview

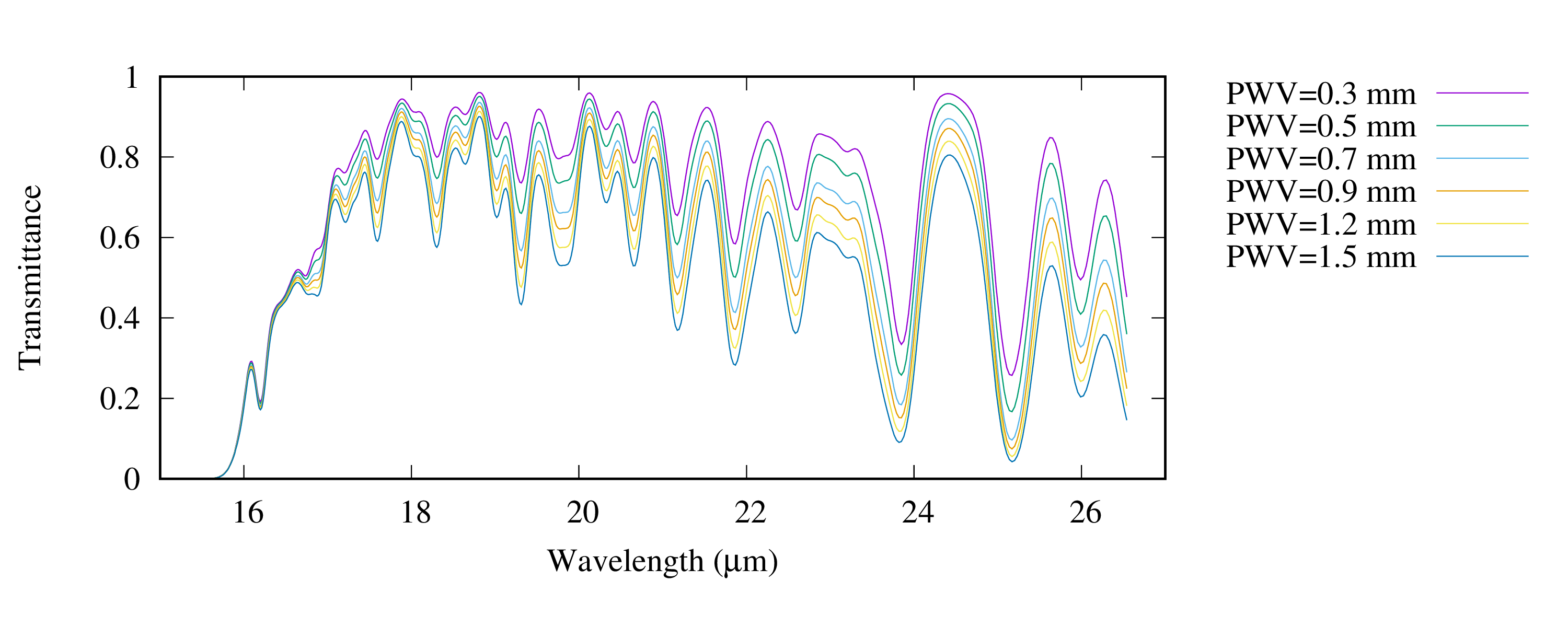

Q-band atmospheric transmittance smoothed with a Gaussian function with an FWHM of 0.0005 um-1.

Data

PWV (mm)Resolution
No Smoothing0.0005 um-1
0.3filedatafiledata
0.5filedatafiledata
0.7filedatafiledata
0.9filedatafiledata
1.2filedatafiledata
1.5filedatafiledata

MIR 30um-band (26-40 um)

Overview

Atmospheric transmittance at the 30-um band.

Data

PWV (mm)Resolution
No Smoothing
0.3filedata
0.5filedata
0.7filedata
0.9filedata
1.2filedata
1.5filedata
