Broad Band Filters†

Namelambda (um)dlambda (um)System Efficiency (%)MagZero (AB sec/count)
B0.43910.1001522.2
V0.53520.0823022.6
R0.64390.1192922.8
I0.80630.1661722.3

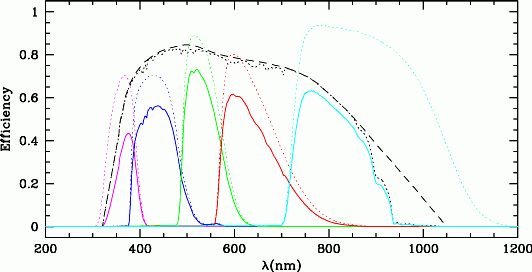

Filter response curve for the optical channel.Black dashed line is the CCD QE curve, and dotted line is QE+dichroic mirror profile. Colored thin dashed lines are the filter profiles, and thick solid lines show the combinations of filter+CCD QE+dichroic mirror.
