Top / Optical Channel / Dichroic Mirror

Specifications

NameValue
Wedge Angle0.53 (deg)
MaterialFused Silica
Dimension71 mm x 50 mm x 10mm
Reflection Wavelength0.4 - 0.86um
Transmission Wavelength0.95 - 2.4 um
ManifacturerAsahi Spectra
Transmittance Curve of the Installed Dichroic Mirror

Photos

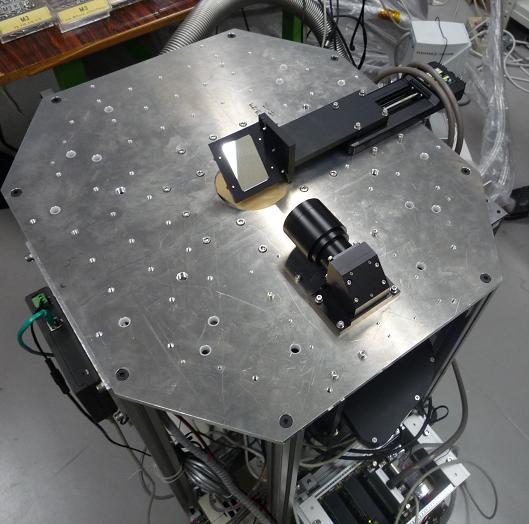

Dichroic Mirror Unit installed on ANIR

Attach file: filedichroic.jpg 596 download [Information]
