Broad Band Filters†

Name	lambda (um)	dlambda (um)	System Efficiency (%)	MagZero (AB sec/count)
B	0.440	0.100	6	22.0
V	0.533	0.076	9	21.9
R	0.632	0.094	6	21.6
I	0.785	0.116	3	20.8

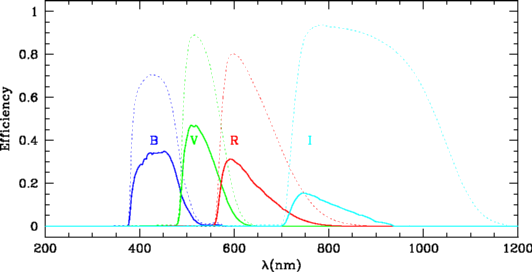

Filter response curve for the optical channel.Thin dashed lines are the filter profiles, and thick solid lines show the combinations of filter+CCD QE+dichroic mirror.
